34 Ton Side Tipper Trucks — Interlink Combinations & Rigid Alternatives

What Is a 34 Ton Side Tipper Interlink?

An interlink side tipper is a road-train combination built for bulk haulage on southern African mining and agricultural routes. The set typically consists of:

• A 6x4 prime mover (tractor head) rated at 420–480 hp
• A lead side-tipping trailer of approximately 16–17 tonnes payload
• A slave side-tipping trailer of approximately 17–18 tonnes payload

Total combination payload lands near 34 tonnes, which is why buyers search for a 34 ton unit — yet what they need is a tractor plus two trailers, not a single rigid vehicle. The side-tipping mechanism discharges the load laterally rather than rearward, which allows faster cycle times on narrow mine tracks and reduces the risk of the body catching overhead infrastructure in confined stockpile areas.

This configuration dominates chrome and coal hauling corridors in South Africa, Zimbabwe, and Zambia. It is also used for aggregates, maize, and sugar cane in East Africa.

Side-Tip vs Rear-Tip: Which to Choose?

Both designs move bulk material, but they suit different site conditions.

Side-tippers are preferred when: the discharge point is narrow or has overhead clearance restrictions; cycle times are critical and rapid discharge matters; and the haul road permits a long combination. Because both trailers tip simultaneously to one side, a full 34-tonne load can be discharged in under two minutes without the truck reversing into position.

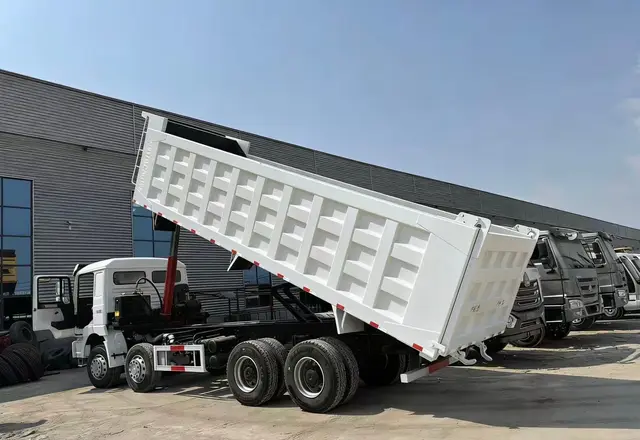

Rear-tippers are preferred when: the load is mixed or wet material that tends to stick and needs gravity assistance from a high-angle body; the site is a standard construction pit where a conventional dump truck is easier to manoeuvre; or the buyer wants a single rigid unit rather than a combination requiring a specialist driver.

If your operation is a South African chrome mine or a coal stockpile, a side tipper interlink is the industry standard. If you are hauling sand, stone, or soil on a general construction project in East Africa or the Middle East, a rigid rear-tip dump truck may be simpler to operate and maintain.

Interlink Regulations: What Each Country Allows

Interlink regulations differ sharply across southern and eastern Africa, and getting the spec wrong means your combination sits at the border or draws fines on the weighbridge.

• South Africa: Interlinks up to 22 m overall length on national roads under standard permits, with a 56-tonne gross combination mass limit on designated corridors. Most chrome and coal haulers operate within this framework on the N4, N1, and N12 corridors.
• Zimbabwe: 53t GCM limit on the Beitbridge–Harare route, but a stricter bridge formula applies on older spans — axle spacing matters as much as total weight.
• Zambia: 56t GCM on gazetted routes with special permits, mainly serving copper belt corridors between Ndola, Kitwe, and Solwezi.
• Mozambique: 48t GCM on the EN1, plus a separate Mozambican transport licence required for foreign-registered combinations.
• Tanzania: Interlinks permitted on designated mining haul routes under mine-specific permits but not on trunk roads between cities.

Before ordering a combination, confirm the regulations for your actual operating route — not just the country. We can help match the tractor and trailer spec to the legal limits on your corridor.

How Sigma Supplies the Combination

Sigma holds inspected, refurbished Chinese 6x4 tractor heads in stock at our yard. These units are available in LHD or RHD configuration and have been mechanically checked, with major wear items — brakes, tyres, fifth wheel — serviced before shipment.

Side-tipping trailers are sourced to order. When you enquire, tell us your target payload (33–36 t GCM), your discharge side preference, axle configuration, and destination port. We locate matching trailers, inspect them, and quote the combination as a set. We can ship tractor and trailers together on the same vessel to reduce your logistics complexity.

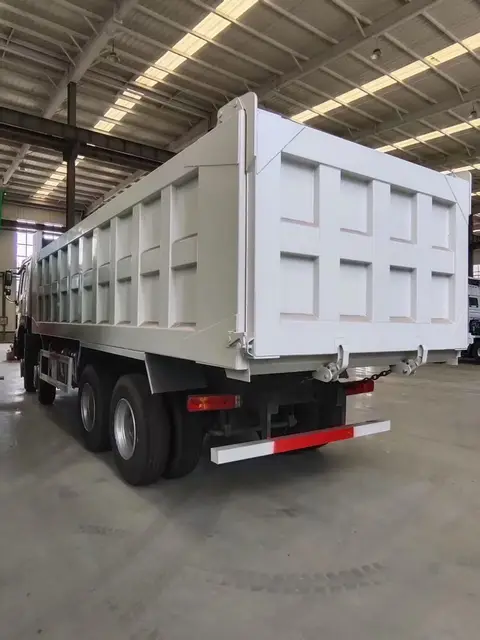

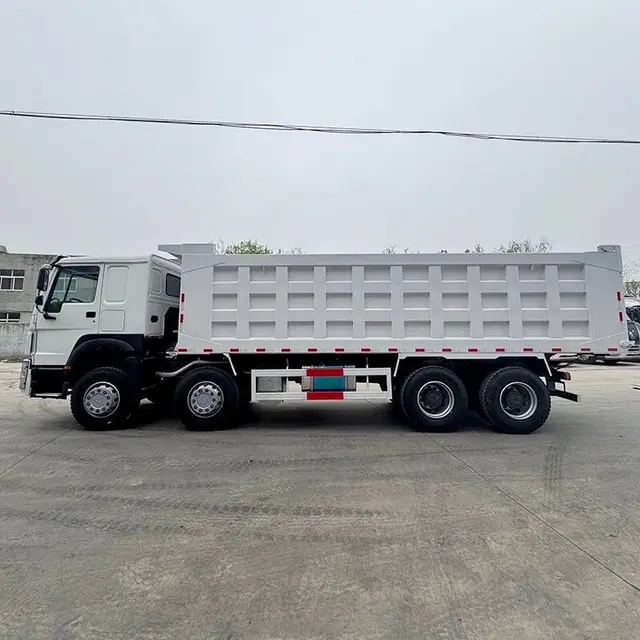

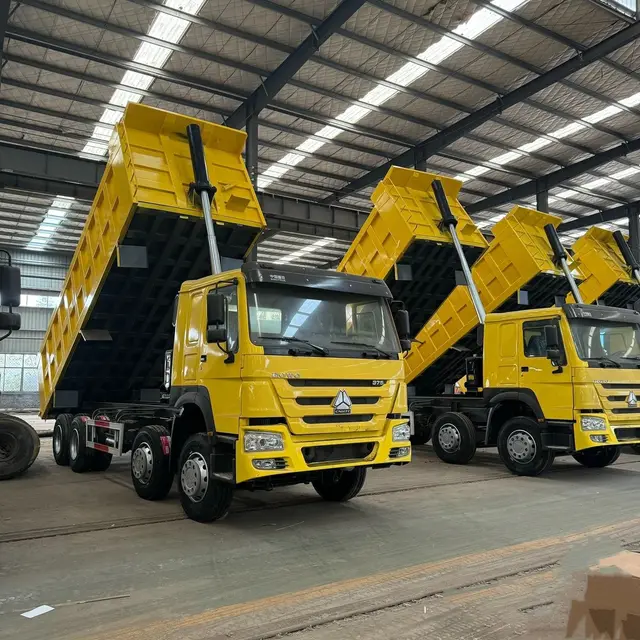

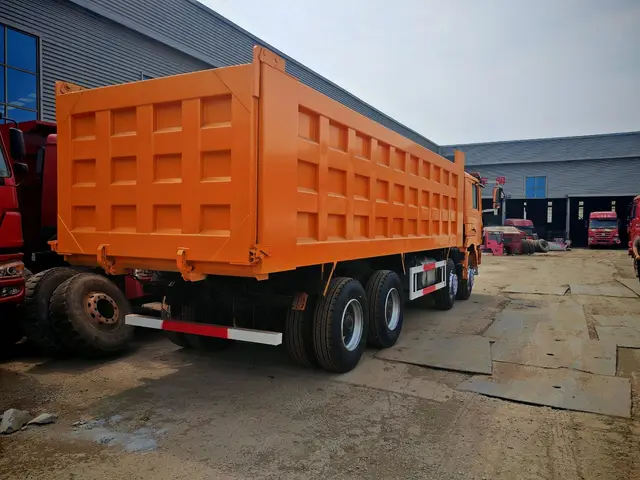

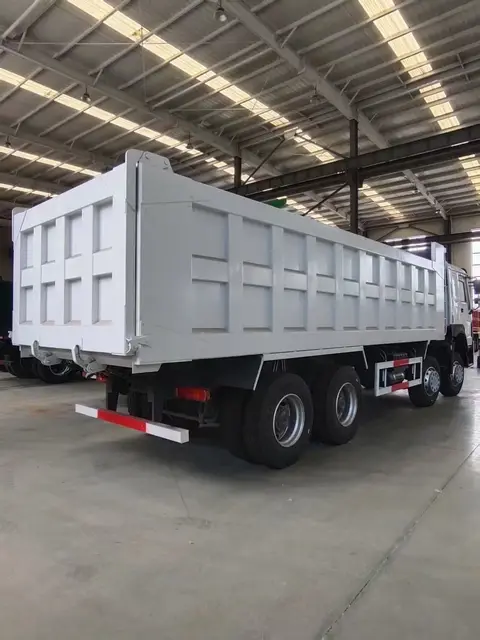

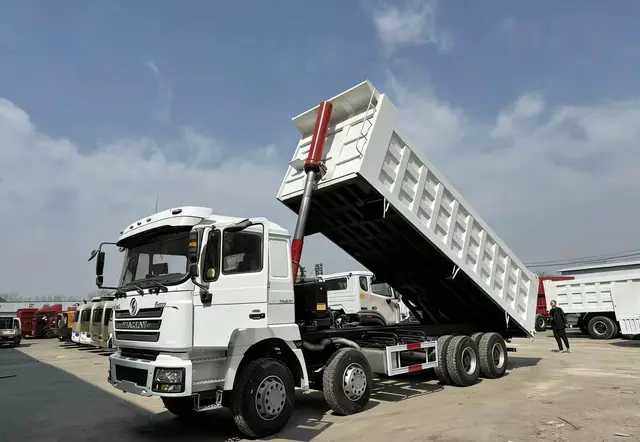

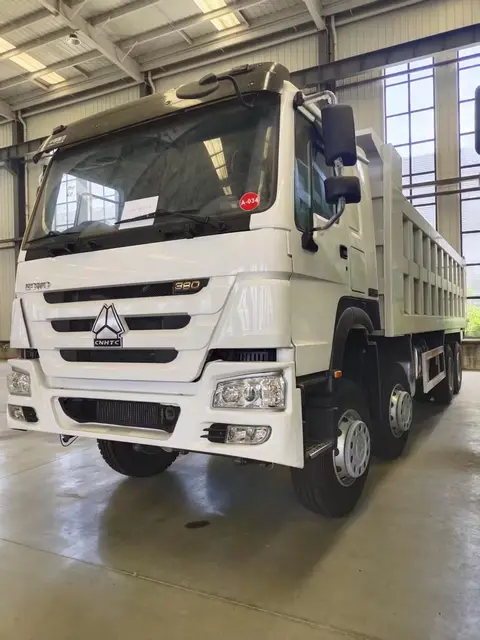

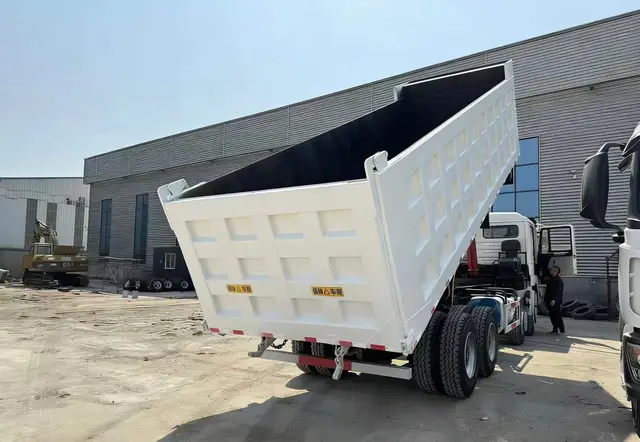

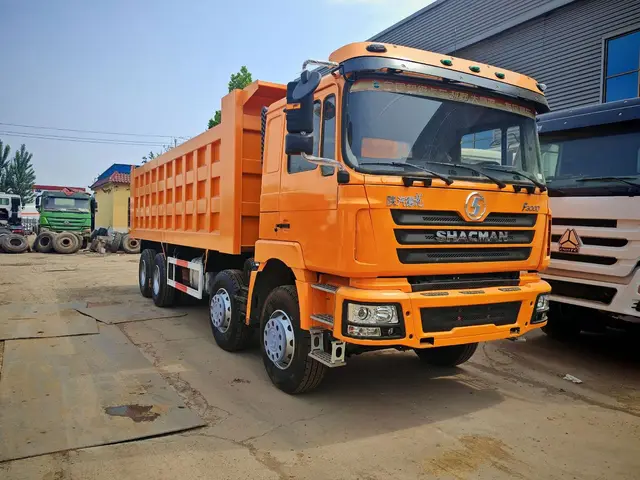

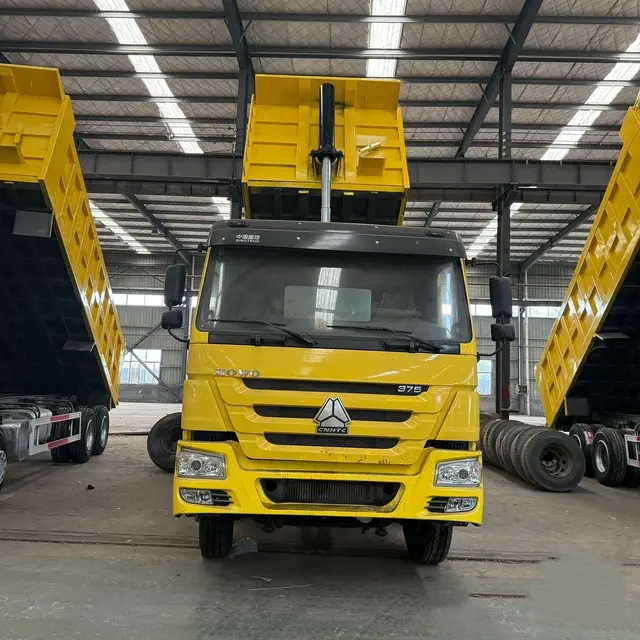

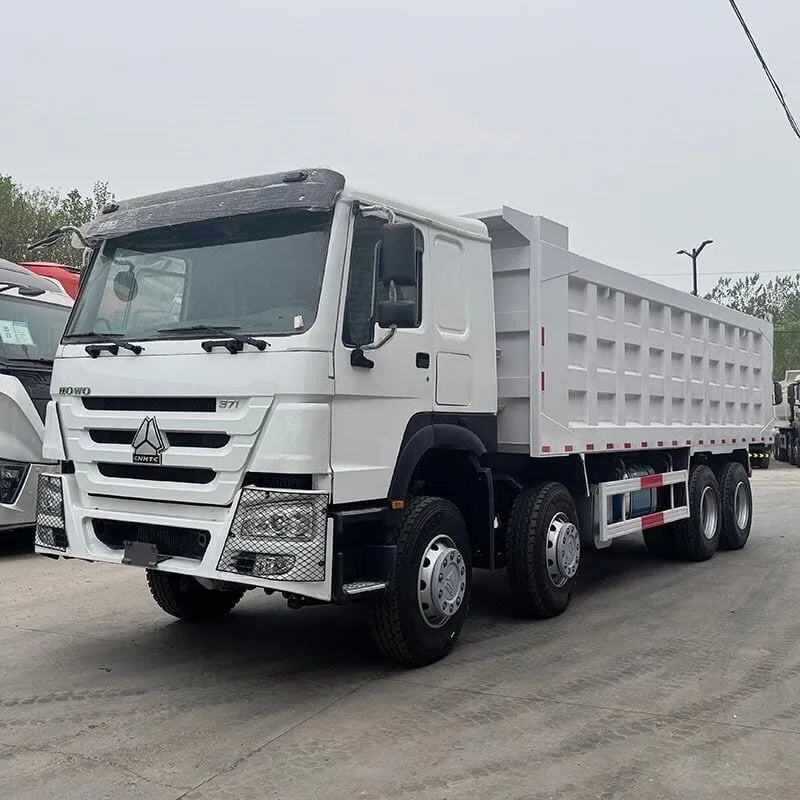

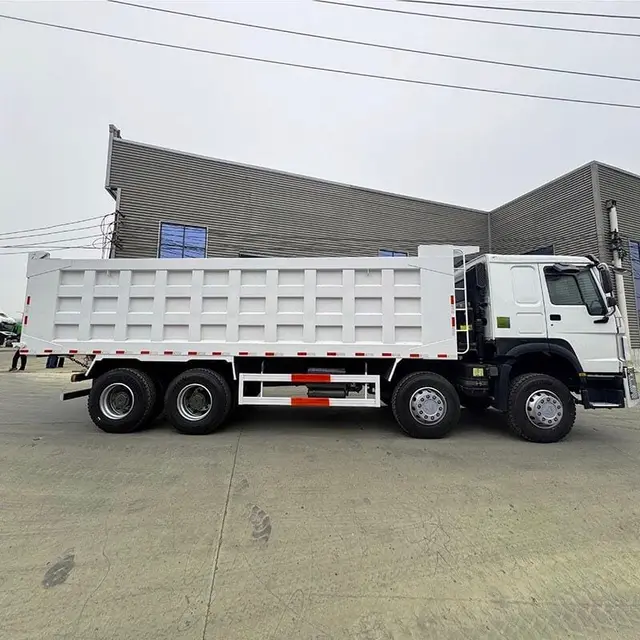

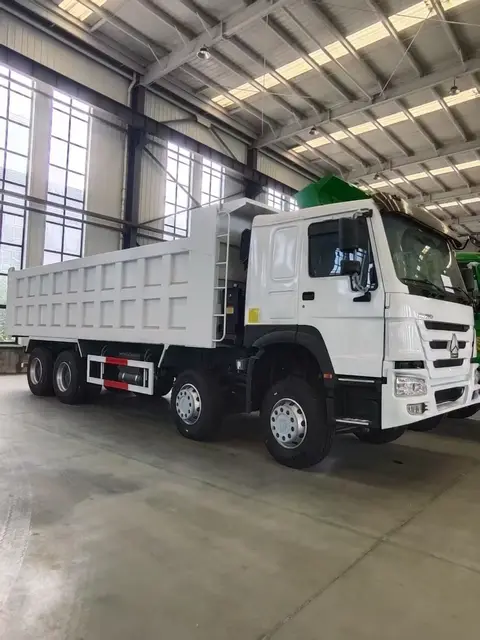

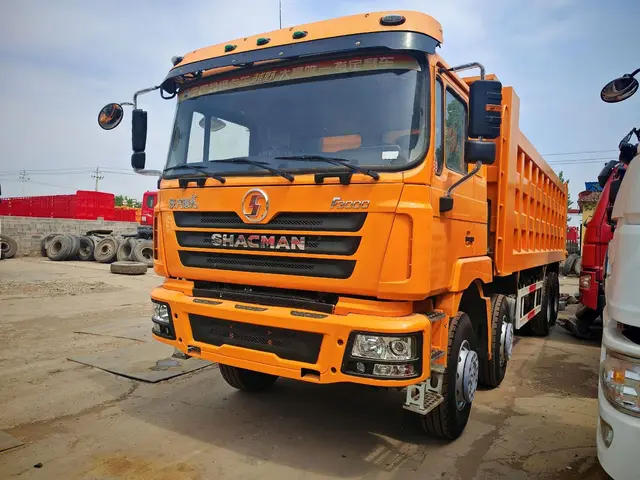

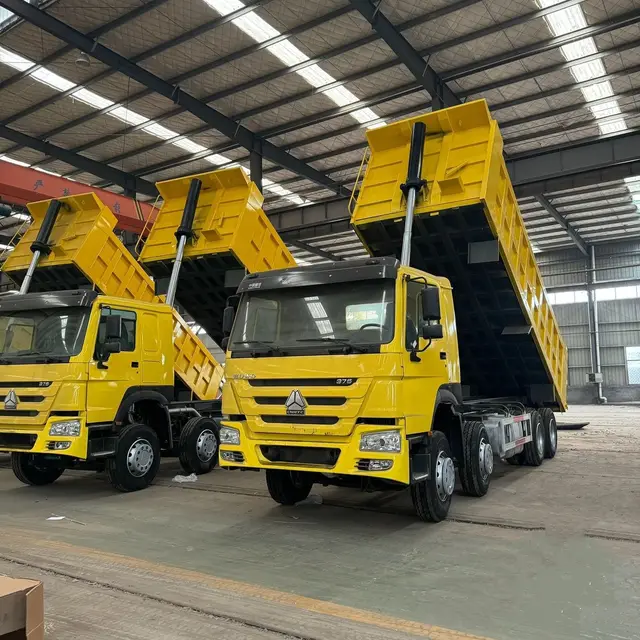

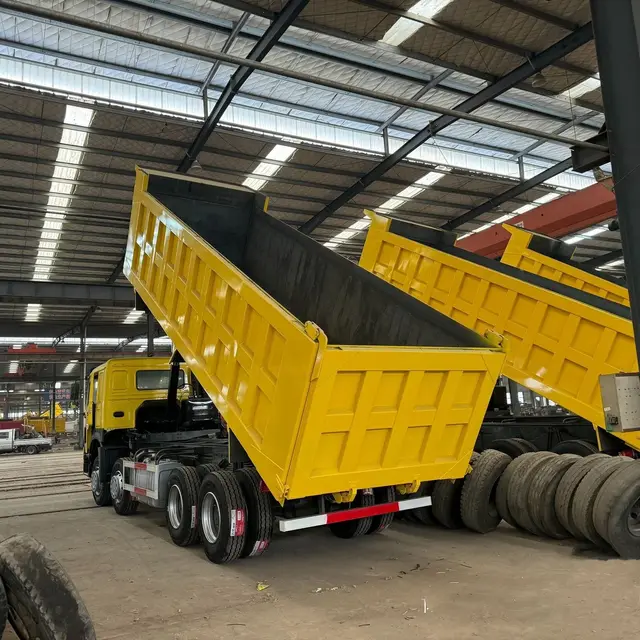

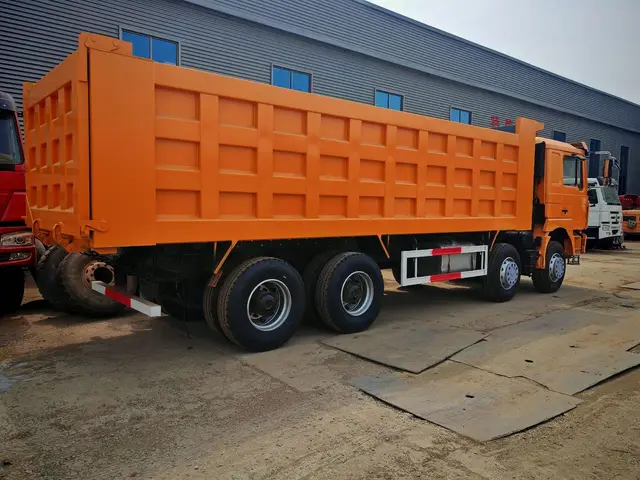

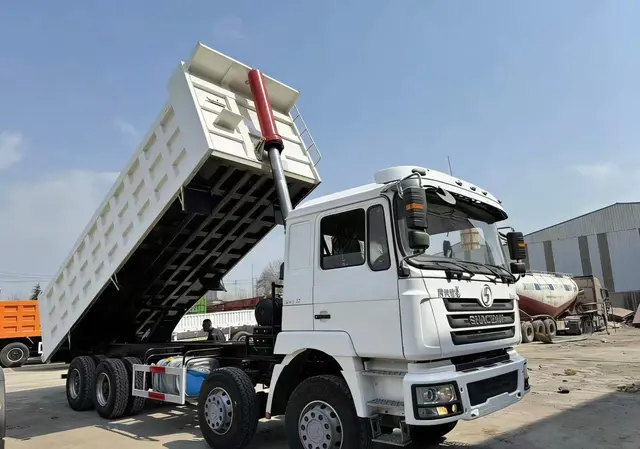

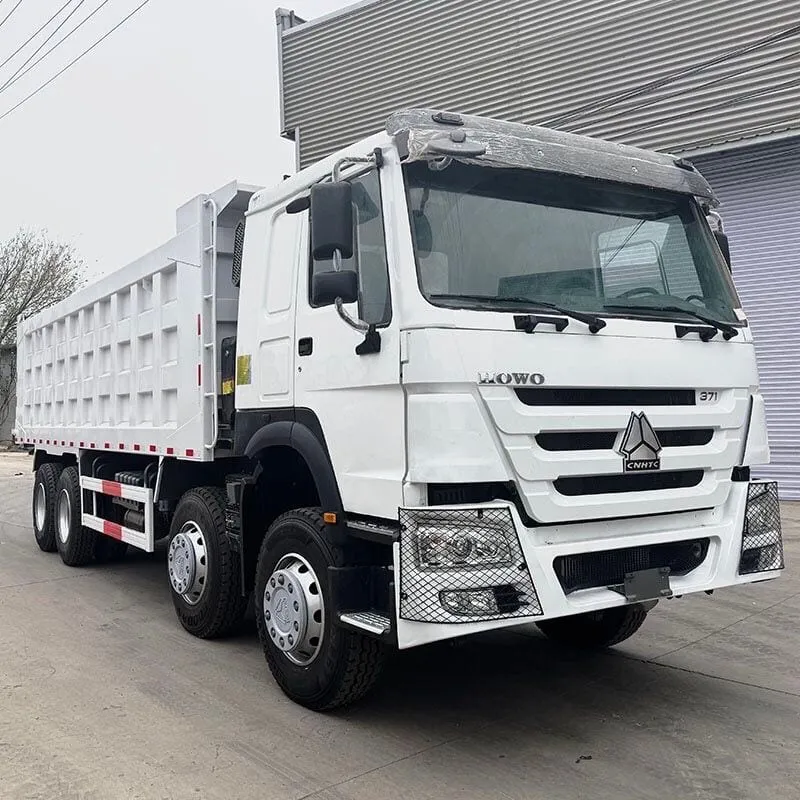

For buyers who want a rigid alternative without the interlink complexity, we also stock 8x4 rigid dump trucks carrying 25–30 tonnes payload — suitable for quarry, road construction, and general earthworks. See the options below.

All units ship CIF to approximately 40 countries including South Africa (Durban), Kenya (Mombasa), Nigeria (Apapa), Uganda, Ghana, Tanzania, Zambia, UAE (Jebel Ali), and Iraq.

What to Check Before You Buy a Used Side Tipper Set

A used interlink combination has more wear points than a single truck, so inspection scope is wider:

Tractor head: engine compression and oil condition; gearbox and transfer case operation; axle differentials and wheel ends; fifth wheel plate and kingpin clearance; air brake system integrity across all circuits.

Trailers: chassis rail condition for cracks or previous repair welds; tipping body floor thickness (chrome ore is abrasive and wears floors fast); hydraulic ram seals and cylinder condition; inter-trailer coupling and draw-bar geometry; tyre tread depth and sidewall condition on all axles.

For buyers purchasing without travelling to China, Sigma provides a pre-shipment inspection report with photographs and odometer confirmation. We also arrange third-party inspection if your bank or financier requires it.
